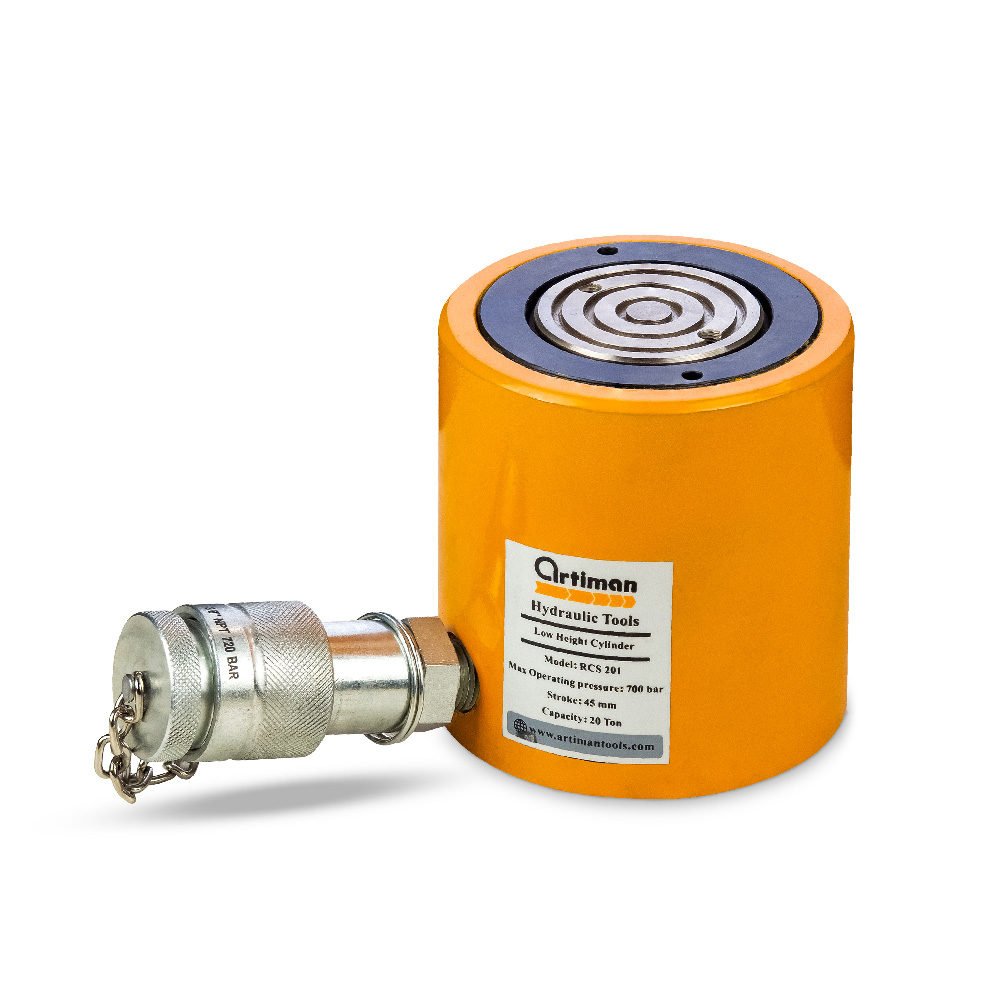

Single-Acting Short “Book-Type” Hydraulic Jacks
Single-acting short “book-type” hydraulic jacks are another widely used type, designed and manufactured by Artiman Company based on Enerpac standards. RCS jacks are produced in 5 models with capacities ranging from 10 tons to 90 tons. These jacks are generally short in height, making them more suitable for applications with limited working space. In RCS models, two threaded holes are provided at the base of the jack to allow attachment to a stand or directly to the workpiece.
Model Number | Cylinder Capacity ton (Kn)
| Stroke
(mm) | Cyl. Effect. Area () | Oil Cap.
() | Collapsed Height A (mm) | Extended Height B (mm) | Outside Dia. D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) |
Base to Adv. Port H (mm)
|
(kg) |
RCS-101 | 10 (101) | 38 | 14.5 | 55 | 88 | 126 | 69 | 42.9 | 38.1 | 17 | 4.1 |
RCS-201 | 20 (201) | 45 | 28.7 | 129 | 98 | 143 | 92 | 60.5 | 50.8 | 17 | 5.0 |
RCS-302 | 30 (295) | 62 | 42.1 | 261 | 117 | 179 | 101 | 73.2 | 66.5 | 19 | 6.8 |
RCS-502 | 45 (435) | 60 | 62.1 | 373 | 122 | 182 | 124 | 88.9 | 69.8 | 23 | 10.9 |
RCS-1002 | 90 (887) | 57 | 126.7 | 722 | 141 | 198 | 165 | 127.0 | 92.2 | 31 | 22.7 |
Model Number | Plunger Protrusion From Base K (mm) | Plunger To Base L (mm) | Plunger To Mtg. Hole M (mm) |
Thread O (mm) |
Thread Depth P (mm) | Bolt Circle U (mm) |
RCS-101 | 5 | - | - | M4 | 8 | 26 |
RCS-201 | 3 | - | - | M5 | 8 | 39 |
RCS-302 | 3 | - | - | M5 | 8 | 39 |
RCS-502 | 2 | - | - | M5 | 8 | 39 |
RCS-1002 | 1 | - | - | M8 | 10 | 55 |
Optional Bolt On Tilt Saddle Dimensions (mm) | |||||
For cyl. Model | Model Number | A | B | C | |
RCS-101 | CAT-11 | 35 | 11 | 21 | |
RCS-201,-302,-502 | CAT-51 | 50 | 15 | 29 | |
RCS-1002 | CAT-101 | 71 | 17 | 35 | |
Specifications
| Size | RCS 201, RCS 101, RCS 302, RCS 502, RCS 1002 |
