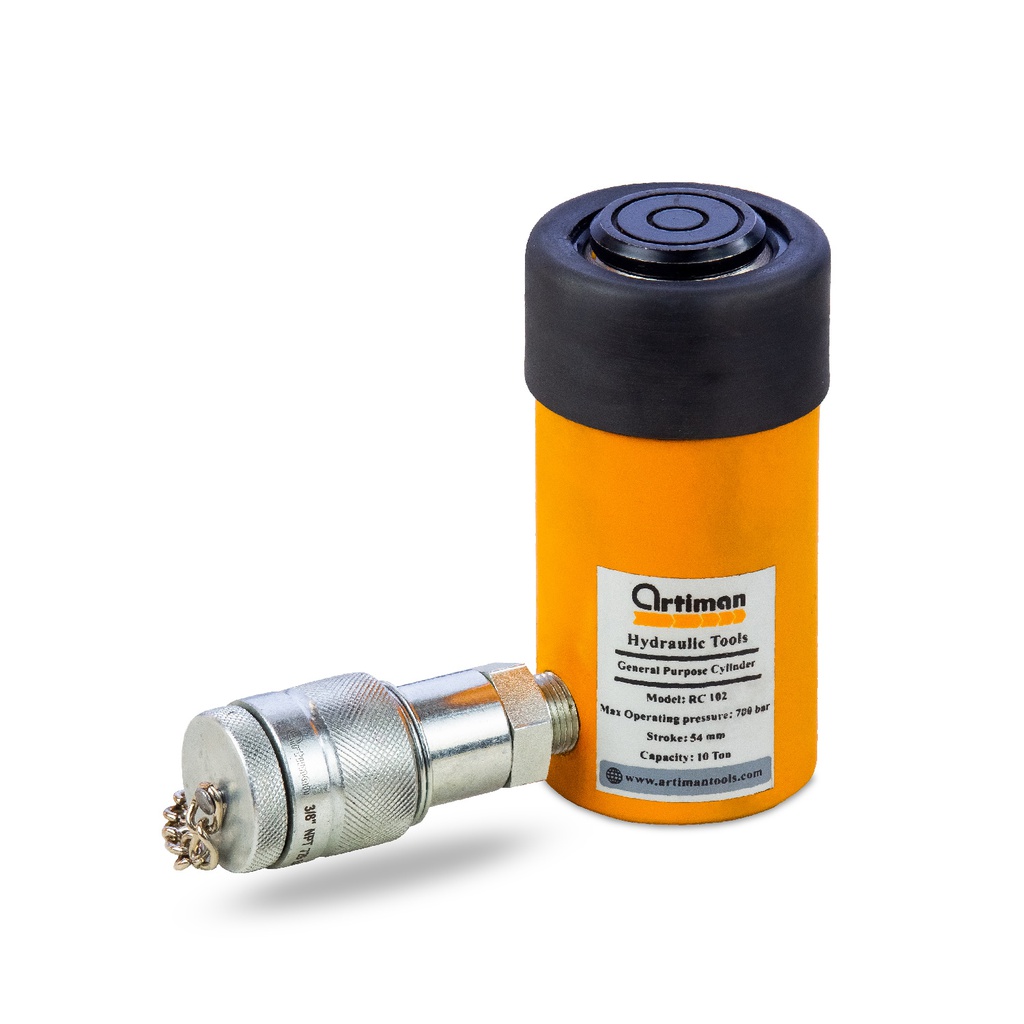

Single-Acting Hydraulic Jack
Single-acting hydraulic jacks are among the most commonly used types of jacks. These jacks are produced and supplied by Artiman Company in 8 models, ranging from 5 tons to 95 tons, with stroke lengths from 16 mm to 362 mm. The top of the jack features a threaded section on the body to allow secure fastening during use if needed. At the base, two threaded holes are provided to attach the jack to a stand for better stability. To operate this type of jack, a 1-liter, 700-bar manual hydraulic pump along with a hose, gauge, and gauge base—also produced by Artiman Company—is required.
For viewing How Hydraulic Jacks Work Click to view
Product Features:
- These jacks are single-acting with spring return.
- The operating pressure of this jack is 700 bar.
- High quality and comparable to foreign models.
- Resistant to corrosion and rust.
- Lightweight
- Ergonomic design
- Safety ensured
- Comes with a one-year product warranty
The production table for this product is as follows.
Specifications
| Model | RC 53, RC 102, RC 50, RC 51, RC 55, RC 57, RC 59, RC 101, RC 104, RC 106, RC 108, RC 1010, RC 1012, RC 1014, RC 151, RC 152, RC 154, RC 156, RC 158, RC 1510, RC 1512, RC 1514, RC 251, RC 252, RC 254, RC 256, RC 258, RC 2510, RC 2512, RC 2514, RC 308, RC 502, RC 504, RC 506, RC 5013, RC 756, RC 7513, RC 1006, RC 10010 |
