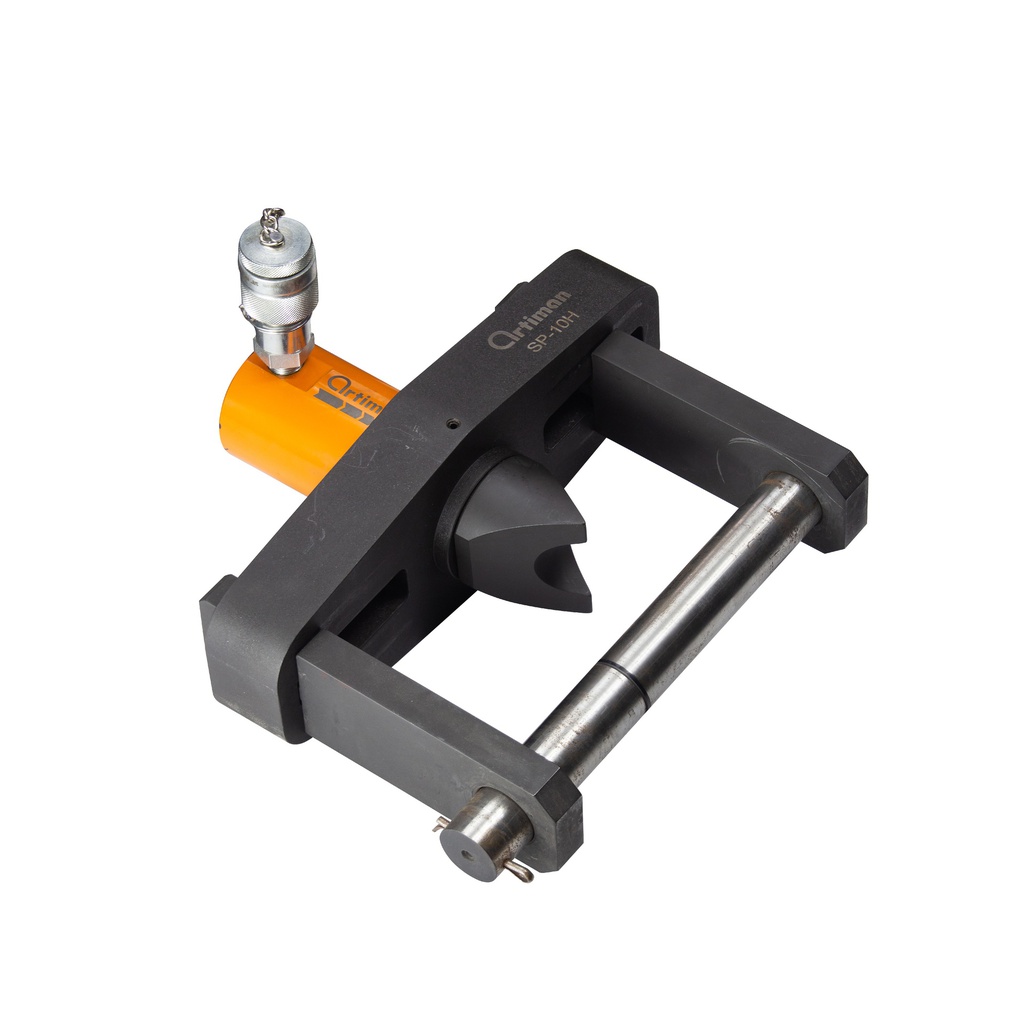

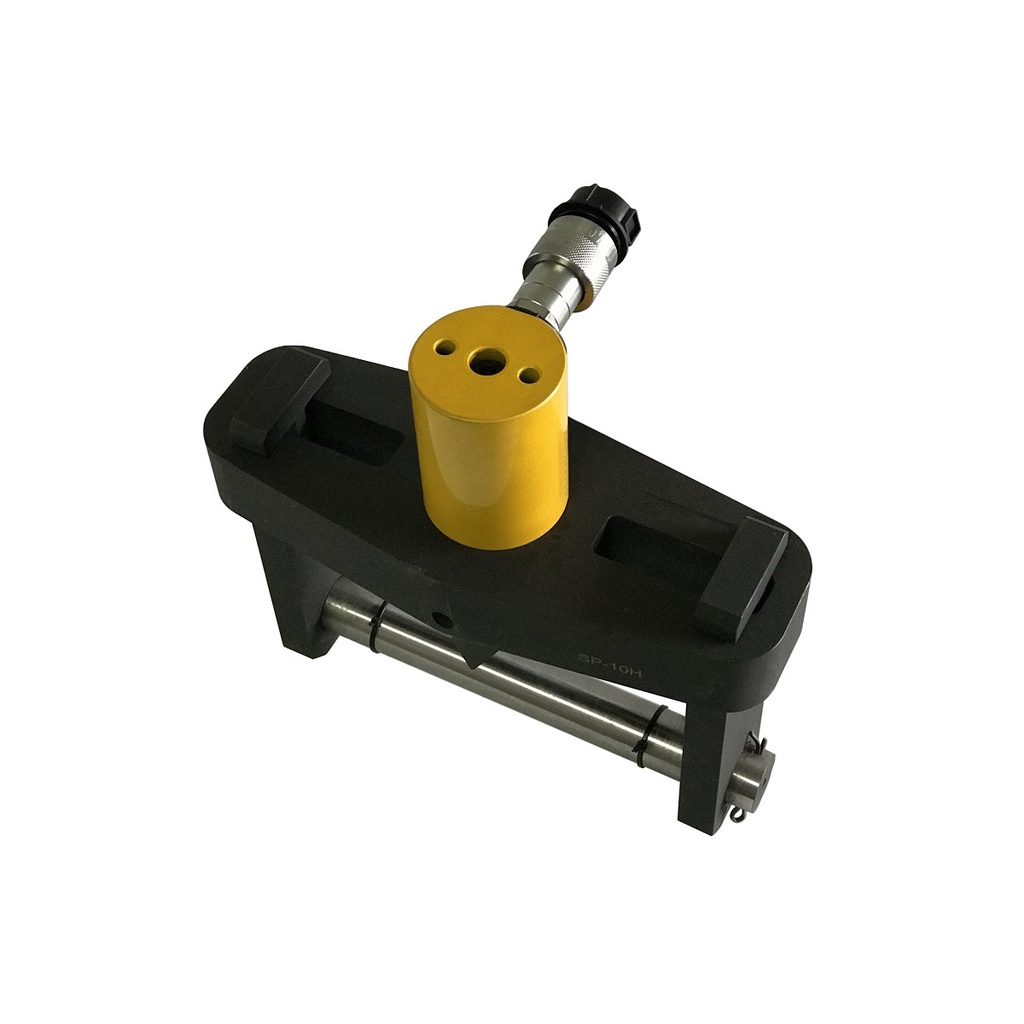

The pin-type flange spreaders produced by Artiman are manufactured in two sizes: 5 tons and 10 tons. They operate with 700 bar hydraulic pressure and are used in situations where there is no gap between two flanges (Zero Gap).
| Oil Capacity (cm3) | Stroke (mm) | Capacity (ton) | Standard Wedge (mm) | Stud Size (mm) | Maximum Flange Thickness (mm) | Model |
| 24.6 | 38 | 5 | 3-28 | 19-28 | 2×57 | SP-5H |
| 78.7 | 54 | 10 | 3-28 | 31-41 | 2×92 | SP-10H |
| Weight | J | I | H | F | E | D | C
Min Max
| B | A | Model |
| 12 | 19 | 206 | 25 | 88 | 196 | 32 |
70 155
| 209 | 76 | SP-5H |
| 18.5 | 13 | 273 | 83 | 114 | 152 | 50 | 104 216 | 279 | 108 | SP-10H |
In some situations, it is not possible to create a 6 mm gap between two flanges, or in other words, they are in a zero-gap condition. To provide spacing and separation of these flanges, Artiman Company has manufactured and supplied the pinned flange spreader in two models, SP-10H and SP-5H, according to the table below. For using this tool, a 700-bar hydraulic pump along with a hose, gauge, and gauge stand is required, which is provided by Artiman Hydraulic Power Systems Company are required to be produce
حسن انجام کار
Specifications
| Model | SP-5H, SP-10H |
