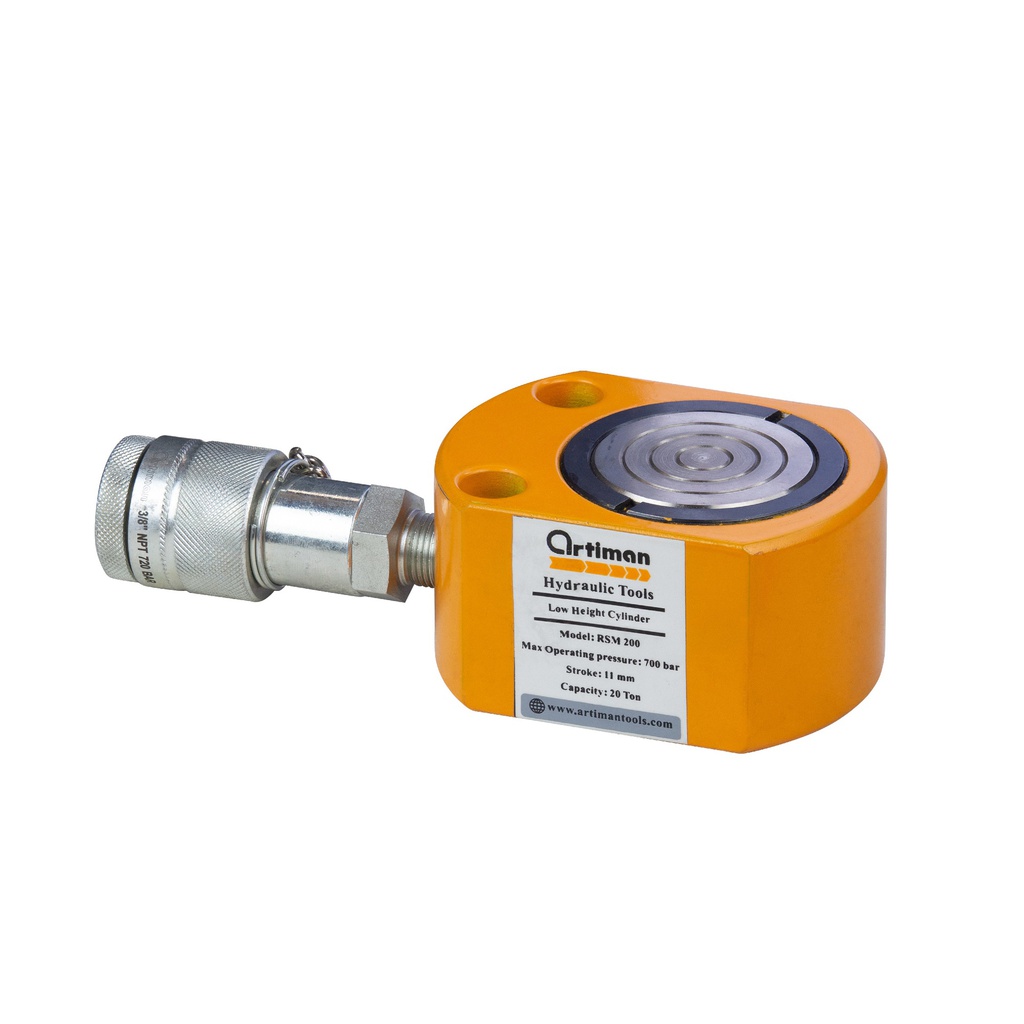

جک هیدرولیکی یک طرفه کوتاه کتابی Single-Acting Low Height Cylinders-RSM
شرایط و ضوابط
یک سال گارانتی
ده سال خدمات پس از فروش
Model Number | Cylinder Capacity ton (Kn)
| Stroke
(mm) | Cyl. Effect. Area () | Oil Cap.
() | Collapsed Height A (mm) | Extended Height B (mm) | Outside Dia. D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) |
Base to Adv. Port H (mm)
|
(kg) |
RSM-50 | 5 (45) | 6 | 6.5 | 4 | 32 | 38 | 58×41 | 28.7 | 25.4 | 16 | 1.0 |
RSM-100 | 10 (101) | 12 | 14.5 | 18 | 43 | 54 | 82×55 | 42.9 | 38.1 | 19 | 1.4 |
RSM-200 | 20 (201) | 11 | 28.7 | 32 | 51 | 62 | 101×76 | 60.5 | 50.8 | 19 | 3.1 |
RSM-300 | 30 (295) | 13 | 42.1 | 55 | 58 | 71 | 117×95 | 73.2 | 63.4 | 19 | 4.5 |
RSM-500 | 45 (435) | 16 | 62.1 | 99 | 66 | 82 | 140×114 | 88.9 | 69.8 | 19 | 6.8 |
RSM-750 | 75 (718) | 16 | 102.6 | 164 | 79 | 95 | 165×139 | 114.3 | 82.6 | 19 | 11.3 |
RSM-1000 | 90 (887) | 16 | 126.7 | 203 | 85 | 101 | 178×153 | 127.0 | 92.2 | 19 | 14.5 |
RSM-1500 | 150 (1386) | 16 | 198.1 | 317 | 100 | 116 | 215×190 | 158.8 | 114.3 | 23 | 26.3 |
Model Number | Plunger Protrusion From Base K (mm) | Plunger To Base L (mm) | Plunger To Mtg. Hole M (mm) |
Thread O (mm) |
Thread Depth P (mm) | Bolt Circle U (mm) |
RSM-50 | 1 | 20 | 22 | - | - | - |
RSM-100 | 1 | 27 | 34 | - | - | - |
RSM-200 | 1 | 39 | 39 | - | - | - |
RSM-300 | 2 | 47 | 44 | - | - | - |
RSM-500 | 2 | 57 | 53 | - | - | - |
RSM-750 | 2 | 69 | 66 | - | - | - |
RSM-1000 | 2 | 76 | 74 | - | - | - |
RSM-1500 | 2 | 95 | 82 | - | - | - |
RSM Cylinder Mounting Hole Dimensions (mm) | ||||
Model Number | Bolt Circle U1 | Hole Dia. V | Counter Bore Dia. | Counter Bore Depth |
RSM-50 | 28.5 | 5.5 | 9.1 | 4.3 |
RSM-100 | 36.6 | 7.1 | 10.7 | 7.9 |
RSM-200 | 49.3 | 10.0 | 15.1 | 9.9 |
RSM-300 | 52.3 | 10.0 | 15.9 | 11.2 |
RSM-500 | 66.5 | 11.0 | 19.0 | 12.7 |
RSM-750 | 76.2 | 13.5 | 20.6 | 14.2 |
RSM-1000 | 76.2 | 13.5 | 20.6 | 14.2 |
RSM-1500 | 117.3 | 13.5 | 20.6 | 14.2 |
مشخصات برای جک هیدرولیکی یک طرفه کوتاه کتابی Single-Acting Low Height Cylinders-RSM
| مدل | RSM 200 یا RSM 50 یا RSM 100 یا RSM 300 یا RSM 500 یا RSM 750 یا RSM 1000 یا RSM 1500 |
